Driveline with 7" Friction Clutch

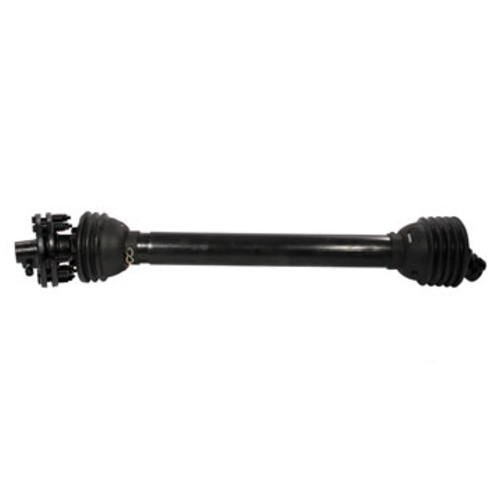

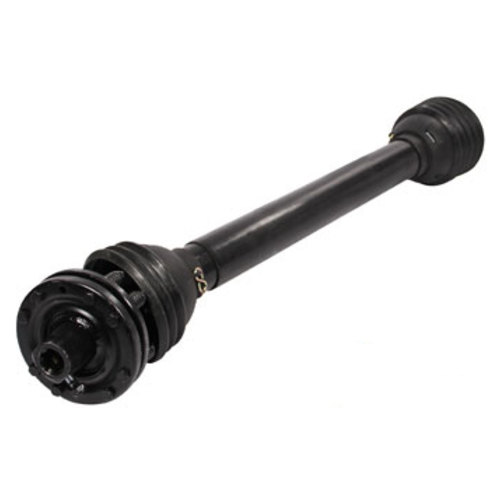

Rotary Cutter Driveline with 7" Friction Clutch 1 3/8 6 Quick Disconnect - image 1

Rotary Cutter Driveline with 7" Friction Clutch 1 3/8 6 Quick Disconnect

( 1 review )     Write a review     Questions and Answers (2)
Price: $290.93
    Stock Status: In Stock
    Availability: Usually Ships in 1 to 2 Days
    Brand: A&I Products
    Part Number: CS53516
    SKU: FP-CS53516

Product Features:

  • Type: Pull/Towed
  • Size: 5

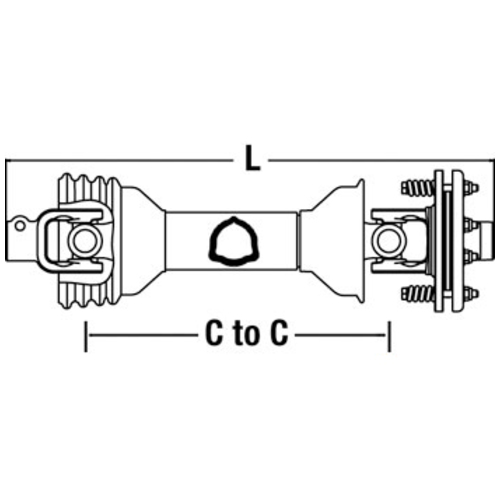

  • C to C Max: 1310 mm / 52"
  • C to C Min: 885 mm / 35"
  • Category: 4 (47HP)
  • Clutch Diameter: 7.09"
  • Implement: 1 3/8" 6 Spline FF1 Friction Clutch
  • Series: 100
  • Total Collapsed Length: 1140 mm / 45"
  • Tractor: 1 3/8" 6 Spline
  • Replaces: 88609

Product Description:
100 Series pull/tow Driveline with Friction Clutch. Driveline minimum C-to-C length: 35" (885 mm),Maximum C-to-C length: 52" (1310 mm), Total collapsed length: 45" (1140 mm). Driveline is size 5 and rated as a category 4 (47 hp). Tractor end: 1-3/8 6 Spline, Implement end: 1-3/8" 6 spline FF1 friction clutch. Clutch diameter is 7.09". It may be necessary to cut this driveline to length. Verify the length by ensuring that sufficient overlap of the drive tubes exists in all working positions without the possibility of bottoming out.

Ratings and Reviews

Rated 5/5 based on 1 reviews.
5 Star (200%)

4 Star (0%)

3 Star (0%)

2 Star (0%)

1 Star (0%)

Write a Product Review
Verified Purchase
Reviewed on 10 Oct 2024 by Imperia, NE

Fit 717 John Deere Shredder

Perfect match to our rotary shredder

Verified Purchase
Reviewed on 10 Oct 2024 by Imperia, NE

Fit 717 John Deere Shredder

Perfect match to our rotary shredder



Add review for this product

Overall rating:
Your Name:
Email:
Review Title:
Write your review:
Upload product photos (optional):

Showing 2 of 2 questions

Question: Does this shaft fit a John Deere 717 rotary cutter? 0
Answer this question
Question: Is there a shaft with this same # for higher HP rating , like 120hp for a 10’HD Mahindra/ Kodial with 3 pt. lift? My book # is 111-60SC. 0
Answer this question
Answer: No options available.
Sep 01, 2022 by Farm Parts


Ask about this product
